Stirrer Accessories

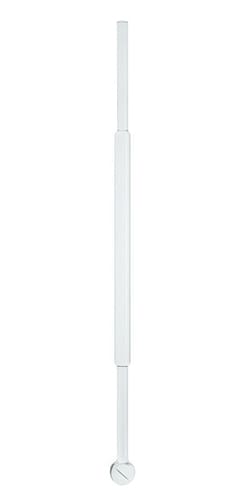

Chemglass Life Sciences Stirring Shaft, 19mm, Polished, Chem-Stir, 50 to 72L Flasks, 895mm OAL, Complete with PTFE Nut and Bolt
Stirring Shaft, 19mm, Polished, Chem-Stir, 50L-72L Flasks, 895mm OAL, Complete with PTFE Nut and Bolt. A 19mm OD precision ground and polished stirrer shaft with our patented Chem-Stir blade attachment system. Shaft (C) has been manufactured with a ring at the lower end to permit attachment of the blade (B) with a PTFE nut (D) and bolt (A). Shaft is supplied complete with PTFE nut and bolt set. For use with PTFE bearings such as the CG-2086. Polished shaft will not cause abrasion to the sealing surfaces of the PTFE bearing, thereby allowing a vacuum tight seal. Uses the same PTFE nut and bolt blade attachment method as the CG-2084 ground shaft.PLEASE NOTE: STIRRER BLADES MUST BE PURCHASED SEPARATELY.THESE SHAFTS ARE NOT TO BE USED WITH ANY TYPE OF GLASS BEARING. FOR GROUND SHAFTS USED WITH GLASS BEARINGS SEE CG-2084.ALSO NOTE: 19MM SHAFTS HAVE A REDUCED DIAMETER TOP SECTION THAT IS 1/2"OD, PLEASE KEEP THIS IN MIND WHEN SELECTING THE PROPER SIZE COUPLING.
Chemglass Life Sciences Replacement 19mm Stirrer Shaft, Reactor Size: 10L, Fits Support Frame: CG-1965-X-150, Overall Length: 30.6"
Replacement 19mm Stirrer Shaft, Reactor Size: 10L, Fits Support Frame: CG-1965-X-150, Overall Length: 30.6". Precision ground and polished stirrer shaft for use with Chemglass process reactors. Designed to utilize CG-2095 and CG-2096 PTFE agitators. Lower portion of stirrer shaft is sandblasted and has a 3/8¿ wide flat. REPLACEMENT STIRRER SHAFTS ARE FOR USE WITH MECHANICAL SEAL STIR BEARING ON LISTED SUPPORT FRAME.
Chemglass Life Sciences Optional 30mm Stirrer Shaft, Reactor Size: 75L, Fits Support Frame: CG-1968-F-24, Overall Length: 50.3"
30mm Stirrer Shaft, Reactor Size: 75L, Fits Support Frame: CG-1968-F-24, Overall Length: 50.3". Precision ground and polished stirrer shaft for use with Chemglass process reactors. Designed to utilize CG-2095 and CG-2096 PTFE agitators. Lower portion of stirrer shaft is sandblasted and has a 3/8¿ wide flat. PLEASE NOTE: CG-2097-75 IS MADE FROM HEAVY WALL TUBING AND HAS INDENTS FOR AGITATOR POSITIONING. INDENTS ARE SPACED EVERY 10¿ FROM THE BOTTOM AGITATOR.REPLACEMENT STIRRER SHAFTS ARE FOR USE WITH MECHANICAL SEAL STIR BEARING ON LISTED SUPPORT FRAME.
Chemglass Life Sciences Agitator, PTFE, High Viscosity, 5.5in Diameter, Fits 19mm Shaft Size, Fits 2L-5L Reactors
Agitator, PTFE, High Viscosity, 5.5in Diameter, Fits 19mm Shaft Size, Fits 4L-5L Reactors. High viscosity agitator, made entirely of PTFE and glass filled PTFE, provides excellent stirring at the bottom of 4L through 5L reactors, especially when heavy slurries are being mixed. Agitator attaches to stir shaft by both a compression fitting and a glass filled PTFE safety pin. Heavy duty blades are 7mm thick. Supplied complete with one glass filled PTFE safety pin.
Chemglass Life Sciences Stirrer Blade, PTFE, Banana Shaped, Solid, 19mm, Heavy Duty, for 2000mL Flasks, 34/45 minimum joint clearance
Stirrer Blade, PTFE, Banana Shaped, Solid, 19mm, Heavy Duty, for 2000mL Flasks, 34/45 minimum joint clearance. Blade is shaped to resemble the contour of a round bottom flask. Blades are solid. Made of 3/16" PTFE to fit 19mm OD stirrer shafts. Minimum joint size listed is the size required to allow passage of the blade.
Chemglass Life Sciences Stirring Shaft, 10mm, Chem-Stir, 2L-12L Flasks, 538mm OAL, Complete with PTFE Nut and Bolt
Stirring Shaft, 10mm, Chem-Stir, 2L-12L Flasks, 538mm OAL, Complete with PTFE Nut and Bolt.¿ PTFE is the only contact in the lower radius of the flask, therefore breakage due to dropping the stirrer shaft has been eliminated.¿ Design permits the proper amount of tension to be applied to the blade, thereby preventing the blade from flipping over to the incorrect side during flask insertion.¿ Design permits use with any PTFE stirrer blade with the keyhole shaped cutout for 10mm or 19mm shafts.A 10mm OD stirrer shaft with our patented* Chem-Stir blade attachment system. Shaft has been manufactured w/ ring at the lower end to permit attachment of the blade with a PTFE nut and bolt. Shaft is supplied complete with PTFE nut and bolt. PLEASE NOTE: STIRRER BLADES MUST BE PURCHASED SEPARATELY.THESE SHAFTS ARE NOT TO BE USED WITH ANY TYPE OF PTFE BEARING. FOR POLISHED SHAFTS USED WITH PTFE BEARINGS SEE CG-2078.* US Patent Number 5,326,167
Chemglass Life Sciences 19mm Stirrer Shaft Retainer, Nylon, Safety
19mm Safety Collar, Nylon. Designed to be placed on the stirrer shaft directly above the bearing. The collar provides protection against the stirrer shaft dropping and hitting the bottom of the vessel. The collar also acts as a dust cover and permits the stirrer to be positioned off the bottom of the vessel. Supplied complete with one each CG-2049 PTFE gasket of the corresponding size.
Ace Glass, Inc. Paddle stir shaft, stainless, 3 blade, 2.5in(63.5mm) diameter on 5/16(7.9mm) x 8.75in(222mm) shaft, high efficiency paddle for viscous liquids & semi-solids
Paddle stir shaft, stainless, 3 blade, 2.5in(63.5mm) diameter on 5/16(7.9mm) x 8.75in(222mm) shaft, high efficiency paddle for viscous liquids & semi-solids
Ace Glass, Inc. Chuck, jacobs, adjustable, up to 3/8in stir shaft, fits 5/16inmotor shaft
CHUCK JACOBS 5/16IN MOTOR
Ace Glass, Inc. Bearing, Trubore, glass, 10mm, 19/22
10mm glass Trubore bearing with 19/22 interchangeable ground joint for use with ACE precision ground stirring shafts. Recommended top stirring speed when used with Trubore Stir-Lube is 1500 rpm.
Ace Glass, Inc. Bearing, Trubore, glass, jacketed, 10mm, PTFE clad 24/40
BEARING 10MM PTFE CLAD 24/40
Cole-Parmer IKA 3159000 Laboratory Mixer Vessel Strap Clamp with Boss Head Clamp
Get the most out of your IKA Mixer with these accessories. For vessel diameters of 1-1/2" to 11-3/4" (40-300 mm).
Cole-Parmer MIXER SAFETY STAND, CAST ZINC-
Mixer Safety Stand, cast zinc-aluminum base w/ epoxy coating, 304 SS support rod
