Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?
Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.
Synthware™ Kugelrohr Distilling Bulb
Used in distillation of very small amount of distillate at lower temperature with high efficiency

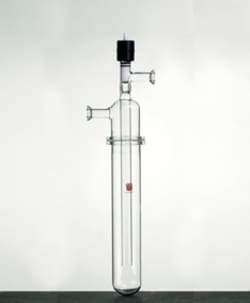

Synthware™ Vacuum Trap - 90° Top Tube
Trap is designed for large volume solvent removal by vacuum.
Synthware™ Dewer Style Vacuum Trap- Microscale
Mircoscale dry ice, dewar style trap
Synthware™ Two-Piece Vacuum Trap
Two-Piece design with a 0 to 12 mm high vacuum valve shut off
Synthware™ Jacketed Vigreux Distillation Head
Sealed-on condenser, braced for strength. Vacuum adapter has an inner joint and a sealed in drip tip.
Synthware™ Short Path Distillation Apparatus- Microscale
Short-path design for microscale application, used with 25mm immersion thermometer, and D27 distillation receiver.
Synthware™ Cow Receiver
For use with distribution adapter/receiving set
Synthware™ Distillation Receiver, Cow Type, with Hose Connection
With hose connection for application of vacuum
Synthware™ Desiccant Flask
For use with D222434 drying chamber.
Synthware™ Graduated Cow Receiver
Tubes are graduated from 0 to 3 mL in 0.2 mL subdivisions.
IKA™ EasySyn 500 Starter Reactor System
EasySyn is the reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.
IKA™ EasySyn 1000 Starter Reactor System
EasySyn is the reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.
Synthware™ Graduated Single Tube Receiver
Centrifuge tube shaped receiver with an upper standard taper joint.
Synthware™ Solvent Still Head with Drip Tip
Grease free, easy syringe access, and easy drainage
IKA™ EasySyn 2000 Advanced Reactor System
EasySyn is the reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.
