Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?
Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.
Petroleum Analyzer Corporation Hand lever / OptiDist oven with accessories
Hand lever / OptiDist oven with accessories
Chemglass Life Sciences 0-8mm Chem-Vac Chem-Cap Valve
0-8mm Chem-Vac Chem-Cap Valve. CHEM-VAC CHEM-CAP valve has a single sidearm sealed at a 90 angle to the barrel. This inexpensive configuration allows for the lower portion of the barrel to be sealed directly to the apparatus being constructed, making for more compact, stronger assemblies. See CG-961 for replacement CHEM-CAP plug and CG-902 for glass portion only.
Chemglass Life Sciences 500mL Solvent Distillation Apparatus Complete, Airfree, Schlenk
500mL Solvent Distillation Apparatus Complete, Airfree, Schlenk. Apparatus for use in distillation of materials like THF or ether. Storage reservoir has a capacity of 500mL. The cold finger coil condenser has a section that's immersed into the distillate. The 0-4mm Chem-Vac™ Chem-Cap valves provide for grease-free, leakproof seals. Side vapor tube is fitted w/a 14/20 standard taper outer joint, to be used w/a CG104214 thermometer adapter which fits a plain stem thermometer. A short (50mm) vigreux section is provided to enhance separation. Syringe access port incorporates a 4mm PTFE stopcock w/a 14/20 outer joint for use w/CG-3022 septum stopper. Lower 3way valve allows for solvent return to flask, takeoff or storage in graduated reservoir. Delivery adapter is fitted w/a 12/5 spherical joint for flexibility & a 0-4mm Chem-Vac™ Chem-Cap valve for purging of the receiving vessel.
Chemglass Life Sciences Adapter, Flexible, Cajon Ultra-Torr, Use with 3/8in OD Tube, 24in Flexible Length, Airfree, Schlenk
Adapter, Flexible, Cajon Ultra-Torr, Use with 3/8in OD Tube, 24in Flexible Length, Airfree, Schlenk. Cajon adapters provide the flexibility of rubber tubing and are the ideal replacement for rubber, plastic, or glass tubing in critical vacuum applications. Connections compensate for misalignment, expansion and contraction; they are compressible by at least 20%, and they are extendable by 50% of its nominal listed length. Cajon adapters are supplied complete with two AF-0067 unions, two AF-0068 cuff adapters, and listed length of flexible tubing. NOTE: Since Flexible tubing will contract when evacuated, glass apparatus should NOT be firmly clamped in place until vacuum is established within the system.

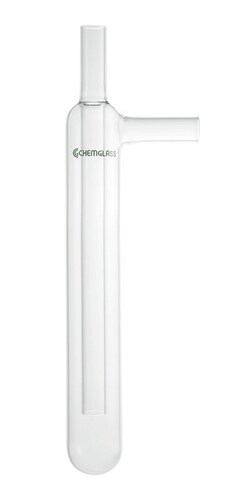

Chemglass Life Sciences Vacuum Trap, 38mm Body OD x 250mm Body Length, 18mm OD Side and Inner Tubes
Vacuum Trap, 38mm Body OD x 250mm Body Length, 18mm OD Side and Inner Tubes. One piece trap used in the removal of undesired vapors in the vacuum system by condensation. Vacuum Trap, 38mm Body OD x 250mm Body Length, 18mm OD Side and Inner Tubes.
Med Vet International McKesson Nonimpregnated Wound Packing Strip, 1 Inch x 5 Yard, 61-59320, 12/Case
Wound Packing Strip McKesson Plain Cotton Non-impregnated Large 1 Inch X 5 Yard 1 Count Sterile Easy dispensing packaging (patent pending) helps facilitate caregiver convenience Made of 100% cotton, ravel-resistant gauze designed to resist linting or fraying Conveniently designed for secure storage and extended shelf life 1 inch x 5 yards
Chemglass Life Sciences Distilling Receiver, 10mL, Moisture Test, Barrett, 24/40 Joint Size, 2mm Glass Stopcock, Approx. 275mm Height x 95mm Width
Distilling Receiver, 10mL, Moisture Test, Barrett, 24/40 Joint Size, 2mm Glass Stopcock, Approx. 275mm Height x 95mm Width. Barrett style distilling receiver used to determine the water content in petroleum or bituminous material. Receiver is made according to ASTM specifications, with the addition of the top outer standard taper joint and lower stopcock. The 2mL has sub-divisions of 0.02mL; the 5ml has subdivisions of 0.20mL; 10ml has subdivisions of 0.1mL; the 20mL has subdivisions of 0.2 from 0 to 3mL and 0.5 from 3 to 20mL. Available with glass or PTFE stopcocks.
Chemglass Life Sciences Vacuum Trap, 32mm Body OD x 250mm Body Length, 13mm OD Side and Inner Tubes
Vacuum Trap, 32mm Body OD x 250mm Body Length, 13mm OD Side and Inner Tubes. One piece trap used in the removal of undesired vapors in the vacuum system by condensation. 32mm Body OD x 250mm Body Length, 13mm OD Side and Inner Tubes.
Chemglass Life Sciences Distilling Receiver, 10mL, Moisture Test, Barrett, 14/20 Joint Size, 2mm PTFE Stopcock , Approx. 190mm Height x 75mm Width
Distilling Receiver, 10mL, Moisture Test, Barrett, 14/20 Joint Size, 2mm PTFE Stopcock , Approx. 190mm Height x 75mm Width. Similar to CG-1261 but with the uptake tube vacuum jacketed to improve distillation performance. The jacket eliminates the possibility of condensation or recrystallization of distillate in the sidearm. The 5ml has subdivisions of 0.20ml; 10ml has subdivisions of 0.1ml; the 20ml has subdivisions of 0.2 from 0 to 3ml and 0.5 from 3 to 20mL. Available with glass or PTFE stopcocks.
Chemglass Life Sciences Distilling Head, Short Path, Vigreux Indents, 10/18 Thermometer Joint, 14/20 Lower Inner Joint, Approx. 110mm Width x 110mm Height
Distilling Head, Short Path, Vigreux Indents, 10/18 Thermometer Joint, 14/20 Lower Inner Joint, Approx. 110mm Width x 110mm Height. Designed for use with small quantities where hold up between the flask and receiver must be kept to a minimum. The thermometer bulb and stem serve as column packing. Upper hose connections are for cooling lines while the lower connection is for vacuum. Available with Vigreux indentations to improve efficiency. NOTE: The 14/20 size accepts a 1” immersion 7/12 or 10/18 thermometer, while the 24/40 and 29/42 sizes accepts a 2” immersion, 10/30 thermometer.
Chemglass Life Sciences Airfree Portable Vacuum System, Complete To Include:
Airfree Portable Vacuum System, Complete. The Chemglass Airfree portable vacuum system has been designed to be a totally self-contained system for use in vacuum distillations, sample degassing, vapor pressure and other preparative work requiring vacuum to 1 micron. Please Note: System is supplied complete as shown with the exception of the Dewar flask, lab jack and port adapters; all of which are available as options.Complete system is shipped partially assembled with instructions in a wooden crate via common carrier, FOB Vineland, NJ. System can be customized with any of the listed optional items, or components can be purchased individually using the part numbers on the following pages. Approx. dimensions are 28 W x 20 D x 70 H.
